Product Outline
HIMELON™ is nonwovens that comply with the RoHS Directive and the VOC restrictions of major automobile manufacturers.
It does not intentionally use halogen compounds, formaldehyde, etc. and it conforms to the low-VOC environmental restrictions. Additionally, it has excellent functionality and exhibits its properties in every field.
Application
HIMELON™ is used in a wide range of fields. Especially in the field of audio devices, home appliance, automobile and office automation equipment, it is used much for various cushioning materials, dust-proofing and light-shielding.

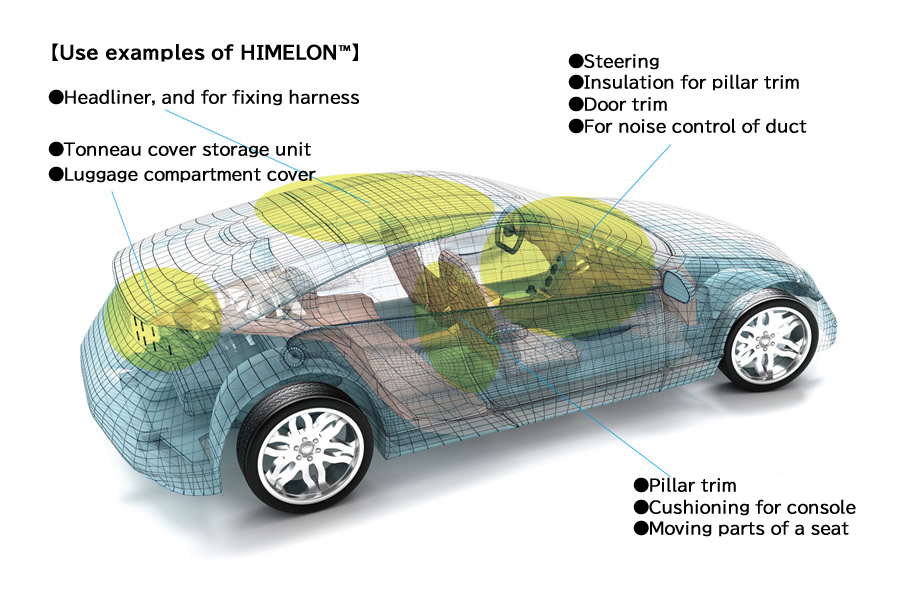

Automobile interior parts
Instrument panel, door trim, console, trunk, etc.
Personal computer
Keyboard component parts
LCD TV
Spacers for joining parts of LCD panel, speakers and cabinets
Audio devices
Headphones, earphones, mobile device speakers, etc.
Laser printer
Heat-radiating part
You can also use HIMELON™ in various fields depending on your ideas.
※HIMELON™ contains hygroscopic substances.
Please pay attention to the usage environment when using it for insulation.
Lineup
HIMELON™ has a diverse lineup to meet various needs.
New product, Soft HIMELON SH series (chemical-bonded nonwoven)
The Soft HIMELON SH series was developed as an improved version of our existing chemical-bonded nonwovens.
It has softer texture than our existing products and this has significantly improved the following capability to a curved surface. As with our existing products, the soft HIMELON SH series has superior wear resistance, hardly causes fluff and is excellent in processability.
It also complies with the RoHS Directive and other strict environmental regulations, and therefore it can be used safely in a wide range of fields.
There are a general type and a flame-resistant type which conforms to FMVSS 302.
＊It is advised that adhesion processing should be done on the outside of roll.
General type
Scroll sideways
| SH Series |
Standard Weight g/㎡ |
Standard Thickness mm |
Size m×m |
Tensile Strength(N/5cm) |
|
|---|---|---|---|---|---|
| MD | CD | ||||
| SH606B | 55 | 0.3 | 1.0×50 | 30 | 20 |
| SH608B | 85 | 0.5 | 1.0×50 | 45 | 30 |
| SH620B | 180 | 1.0 | 1.0×50 | 120 | 85 |
| SH630B | 260 | 1.5 | 1.0×1.0 | 150 | 110 |
Flame-resistant type
Scroll sideways
| Nannen SH Series |
Standard Weight g/㎡ |
Standard Thickness mm |
Size m×m |
Tensile Strength(N/5cm) |
|
|---|---|---|---|---|---|
| MD | CD | ||||
| SH606BN | 60 | 0.3 | 1.0×50 | 45 | 30 |
| SH608BN | 90 | 0.5 | 1.0×50 | 65 | 45 |
| SH620BN | 200 | 1.0 | 1.0×50 | 165 | 110 |
| SH630BN | 280 | 1.5 | 1.0×1.0 | 180 | 130 |
Non-halogen, non-formaldehyde, flame-resistant type / ULA-E4 series (chemical-bonded nonwoven)
UL94 V-0 certified (UL No. E65448)
Conform to FMVSS 302.
The flame-resistant HIMELON ULA-E4 series conforms to V-0, a very high level of flame retardancy under UL-94, the UL flame-resistant standard, and complies with the RoHS Directive.
Therefore, it can be used also in the industrial material field where environmental regulations are strict.
＊It is advised that adhesion processing should be done on the outside of roll.
Scroll sideways
| ULA-E4 Series |
Standard Weight g/㎡ |
Standard Thickness mm |
Size m×m |
Tensile Strength(N/5cm) |
|
|---|---|---|---|---|---|
| MD | CD | ||||
| N9491E | 66 | 0.25 | 1.0×50 | 40 | 40 |
| N9891E | 230 | 0.90 | 1.0×50 | 200 | 140 |
Non-halogen, non-formaldehyde, flame-resistant type / ULH-E series (chemical-bonded nonwoven)
UL94 HF-1 certified (UL No. E65448)
Conform to FMVSS 302
The flame-resistant HIMELON ULH-E series conforms to UL94 HF-1 under the UL flame-resistant standard, complies with the RoHS Directive and it can be used also in the industrial material field where environmental regulations are strict.
＊It is advised that adhesion processing should be done on the outside of roll.
Scroll sideways
| ULH-E Series |
Standard Weight g/㎡ |
Standard Thickness mm |
Size m×m |
Tensile Strength(N/5cm) |
|
|---|---|---|---|---|---|
| MD | CD | ||||
| N9195B | 50 | 0.25 | 1.0×50 | 55 | 35 |
| N9295B | 65 | 0.35 | 1.0×50 | 70 | 45 |
| N9795B | 200 | 0.90 | 1.0×50 | 230 | 160 |
Non-halogen, non-formaldehyde, general type / HN-E series (chemical-bonded nonwoven)
The HIMELON HN-E series with stable quality and various varieties complies with the RoHS Directive and it can be also be used in the industrial material field where environmental regulations are strict.
＊It is advised that adhesion processing should be done on the outside of roll.
Scroll sideways
| HN-E Series |
Standard Weight g/㎡ |
Standard Thickness mm |
Size m×m |
Tensile Strength(N/5cm) |
|
|---|---|---|---|---|---|
| MD | CD | ||||
| HN603B | 30 | 0.15 | 1.0×50 | 15 | 10 |
| HN604B | 45 | 0.25 | 1.0×50 | 25 | 20 |
| HN606B | 60 | 0.35 | 1.0×50 | 45 | 30 |
| HN608B | 75 | 0.45 | 1.0×50 | 65 | 45 |
| HN611B | 100 | 0.55 | 1.0×50 | 85 | 60 |
| HN616B | 130 | 0.70 | 1.0×50 | 130 | 90 |
| HN620B | 180 | 0.90 | 1.0×50 | 165 | 120 |
| HN625B | 225 | 1.20 | 1.0×50 | 180 | 160 |
| HN630B | 280 | 1.50 | 1.0×1.0 | 225 | 200 |
| HN640B | 335 | 1.80 | 1.0×1.0 | 280 | 280 |
HIMELON SN series (needle-punched nonwoven)
The HIMELON SN series has a wider variation of thickness than the HN-E series (chemical-bonded nonwoven) to meet customer requests for a thicker product lineup.
Similar to the HN-E series, the SN series is stable in quality and complies with the RoHS Directive and other strict environmental regulations. Therefore, it can be used safely in a wide range of fields.
＊It is advised that adhesion processing should be done on the outside of roll.
Scroll sideways
| SN Series |
Standard Weight g/㎡ |
Standard Thickness mm |
Size m×m (approx.) |
Tensile Strength(N/5cm) |
|
|---|---|---|---|---|---|
| MD | CD | ||||
| SN05B | 120 | 0.5 | 1.0×50 | 60 | 130 |
| SN07B | 140 | 0.7 | 1.0×50 | 80 | 200 |
| SN09B | 150 | 0.9 | 1.0×50 | 100 | 240 |
| SN15B | 225 | 1.5 | 1.0×50 | 220 | 450 |
| SN20B | 300 | 2.0 | 1.0×50 | 300 | 650 |
| SN25B | 400 | 2.5 | 1.0×25 | 550 | 1050 |
| SN30B | 500 | 3.0 | 1.0×25 | 700 | 1400 |
| SN40B | 670 | 4.0 | 1.0×20 | 800 | 1600 |
| SN50B | 830 | 5.0 | 1.0×20 | 900 | 1800 |
HIMELON SP series (pressed felt)
Conform to FMVSS 302.
The HIMELON SP series, which conforms to FMVSS 302, is stable in quality and complies with the RoHS Directive and other strict environmental regulations as with the SN series. Moreover, the main raw material of the SP series products is natural fiber wool and the SP series is eco-friendly products with excellent biodegradability.
The SP10WW is dyed (white); SP20W and SP30W are undyed (unbleached); SP10B-50B are dyed (black).
＊It is advised that adhesion processing should be done on the outside of roll.
Scroll sideways
| SP Series |
Standard Weight g/㎡ |
Standard Thickness mm |
Size m×m (approx.) |
Tensile Strength(N/5cm) |
|
|---|---|---|---|---|---|
| MD | CD | ||||
| SP10WW | 215 | 1.0 | 1.0×45 | > | 115 |
| SP20W | 500 | 2.0 | 0.9×38 | > | 230 |
| SP30W | 750 | 3.0 | 0.9×20 | > | 345 |
| SP10B | 230 | 1.0 | 0.9×45 | 140 | 140 |
| SP12B | 285 | 1.2 | 0.9×40 | 350 | 140 |
| SP15B | 370 | 1.5 | 0.9×40 | 520 | 180 |
| SP18B | 425 | 1.8 | 0.9×38 | 640 | 200 |
| SP23B | 510 | 2.3 | 0.9×20 | 360 | 460 |
| SP30B | 720 | 3.0 | 0.9×20 | 750 | 850 |
| SP40B | 960 | 4.0 | 0.9×20 | 900 | 900 |
| SP50B | 1200 | 5.0 | 0.9×20 | 1000 | 1000 |
HIMELON flame-resistant SN series (needle-punched felt)
Conform to FMVSS 302
The HIMELON flame-resistant SN series is a needle-punched nonwovens which is made from 100% polyester, and conforms to FMVSS302.
It has the same variation of thickness as the HIMELON SN series.
It also complies with the RoHS Directive and other strict environmental regulations, and therefore it can be used safely in a wide range of fields.
＊It is advised that adhesion processing should be done on the outside of roll.
Scroll sideways
| Nannen SN Series |
Standard Weight g/㎡ |
Standard Thickness mm |
Size m×m (approx.) |
Tensile Strength(N/5cm) |
|
|---|---|---|---|---|---|
| MD | CD | ||||
| SN05BN | 120 | 0.5 | 1.0×50 | 50 | 70 |
| SN07BN | 140 | 0.7 | 1.0×50 | 60 | 90 |
| SN09BN | 150 | 0.9 | 1.0×50 | 70 | 100 |
| SN15BN | 225 | 1.5 | 1.0×50 | 150 | 200 |
| SN20BN | 300 | 2.0 | 1.0×50 | 200 | 350 |
| SN25BN | 400 | 2.5 | 1.0×25 | 350 | 500 |
| SN30BN | 500 | 3.0 | 1.0×25 | 450 | 650 |
| SN40BN | 670 | 4.0 | 1.0×20 | 600 | 900 |
| SN50BN | 830 | 5.0 | 1.0×20 | 750 | 1100 |
Special processing (embossing, water repellent finishing, mildewproof finishing)
The above picture is an example of embossing. Please contact us for more details.
Please contact us by our dedicated form for further product information.
